Chipboard
ACA crushers
Recycling of organic food waste
ACA mill for chipboard panels, plywood, furniture elements and kitchen elements
Crusher for recycling of chipboard / plywood and furniture elements. Our crushers crushes the chipboard panels so the material can be incinerated or recycled.
The customized chipboard crusher and furniture crusher is very well suited for milling all sorts of plywood, old/new chipboard panels, kitchen elements, furniture elements, tabletops, cupboards, faulty chipboard panels and offcuts from new chipboard panels.
The chipboard crusher’s input is flexible due to the large customized hopper and the size of the output material is also flexible. You can adjust the output size as you desire.
Crusher / mill for chipboard panels and kitchen elements.
Milling of chipboard panels, furniture elements, kitchen elements and faulty production

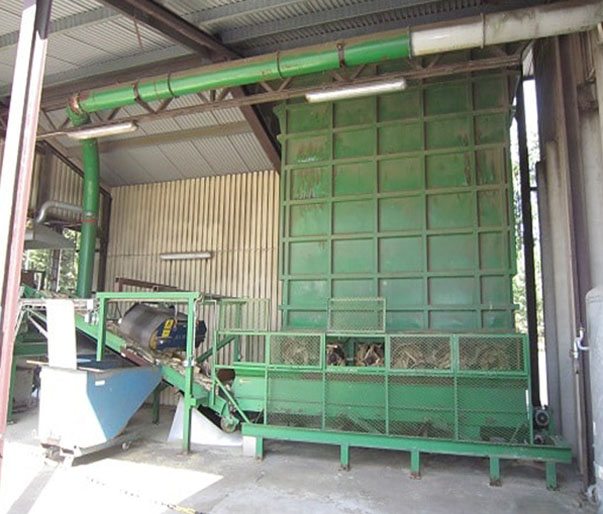

The chipboard mill is fitted with a large hopper which is adjusted to the customer’s requirements. The material can easily be loaded into the hopper with the help of a Digger or from a conveyor belt.
Chipboard panels, furniture elements and plywood
The chipboard crusher and furniture crusher crushes the chipboard panels / furniture elements / kitchen elements / plywood to reduce the volume and separate foreign bodies such as nails, screws, handles, brackets, etc. from the wood, so the wood is ready for subsequent processing either as wood pellets or fuel for cogeneration plants or refuse disposal plants.
The chipboard mill is fitted with a large hopper which is adjusted to the customer’s requirements. The material can easily be loaded into the hopper with the help of a Digger or from a conveyor belt.
Mill for chipboard panels, furniture elements and kitchen elements

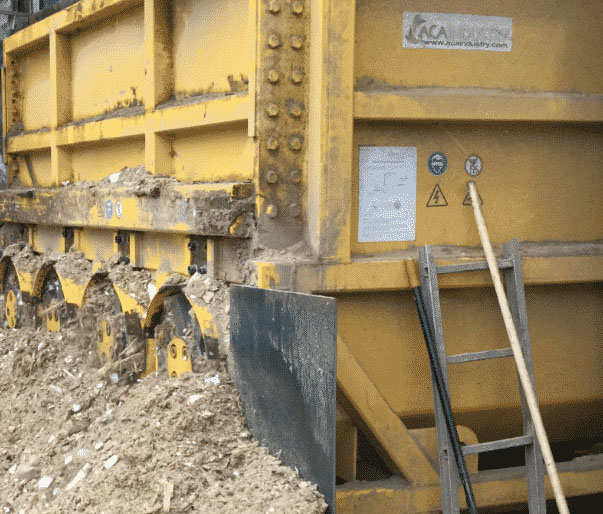

The mill crushes the chipboard panels and separates the panels and the plywood from foreign bodies such as nails, screws, handles, brackets, etc., which are subsequently removed.
Slow-turning crusher
Operating at just 15 RPM and a torque of 13,000 Nm per screw this machine is capable of crushing about anything you feed it.
Because of the slow turning crusher the screws lasts for a long time. And also reduces the noise from the machine.
Operations are highly effective with an ACA chipboard crusher
An even flow of output is produced from the chipboard crusher. Making it easier to remove foreign bodies afterwards.
Input: chipboard panels, furniture elements, kitchen elements and plywood.
Crushing of chipboard panels, plywood and furniture elements
With a substantial weight of up to 20 tonnes, a torque of 13,000 newton metres and reverse operation in the event of excess current, breakdown of the machine can be avoided.
This will result in many years of life and a safe and extremly reliable operation.
Extremely economical in operation
Because of the moving parts not touching each other the machine is guaranteed a long useful life of the parts.
This is possible why the wood components are crushed against each other, whereby the wood and foreign bodies are separated.

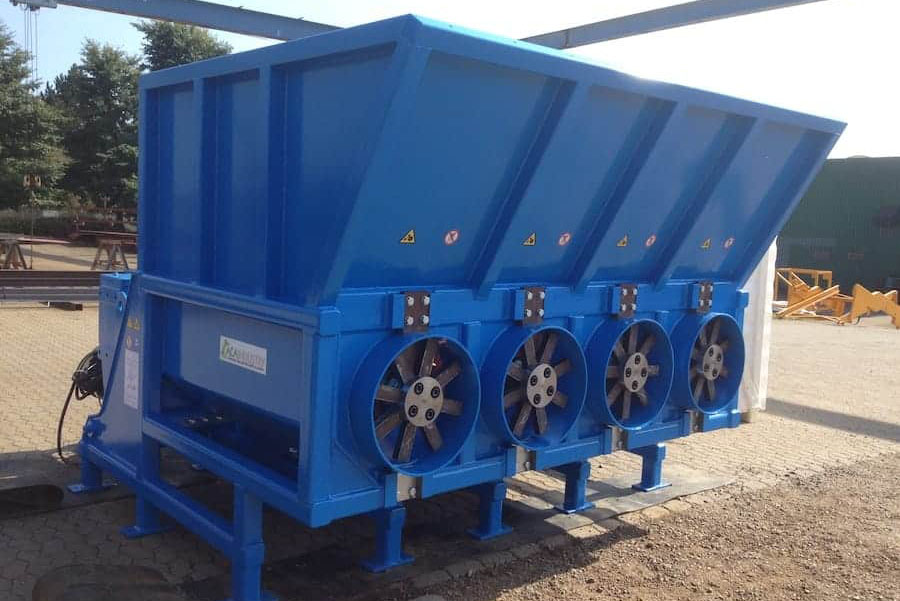

The ACA coarse crusher is available in different versions. We can supply the machine in standard sizes with 2, 3, 4, 6, 8, or 10 screws depending on the desired capacity.
The customised hopper is available in sizes from 2 m3 to 20 m3.
Output: crushed chipboard panels, furniture elements, kitchen elements and plywood
Our crushers’ flexible design makes it easy for you to regulate the size of the output material by adjusting the rotating knives or hole-disc.
Should it be needed these parts replaces very easily.
Crusher / mill for chipboard panels, furniture elements and kitchen elements, etc.
Crusher / mill for chipboard panels and kitchen elements, etc.
